RS Mechanical drive long and short Stroke Sailboat Systems
The Type RS Drives come in two models one with a short stroke (RS SHORT stroke drive) for smaller faster yachts to max 10m or 6000kg displacement and is also used on inboard engine power boats which have cable steering.
The longer stroke (RS LONG stroke drive) offering more power for mid range sailing yachts to max 11.5m or 7000kg displacement. Both models make it easy and economical to install an autopilot on to sailboats or power boats with mechanical steering.
The drive is very responsive and uses little power consumption being popular with Mini transat yachts and other long distance racers. The connection kit can be fitted into very small spaces, ideal for small to midsized modern sailboats which have been utilised by large product boat builders to save on space below decks when designing the interior of yachts.
Rudder feedback unit available as an accessory for all major autopilot Manufacturers mounting directly on to the drive unit for easy installation.
Ideal for – Sailboats to 40ft 7000Kg and inboard engine power boats.
Unique Installation – Offers locations normally not possible inside and on deck.
Easy to Fit – Can be located in very small spaces with optional Rudder feedback unit.
Performance – Very Low power consumption with a slip clutch for overload protection.
Short Stroke – 1082.95€ (Inc. IVA)
Long Stroke – 1203.95€ (Inc. IVA)

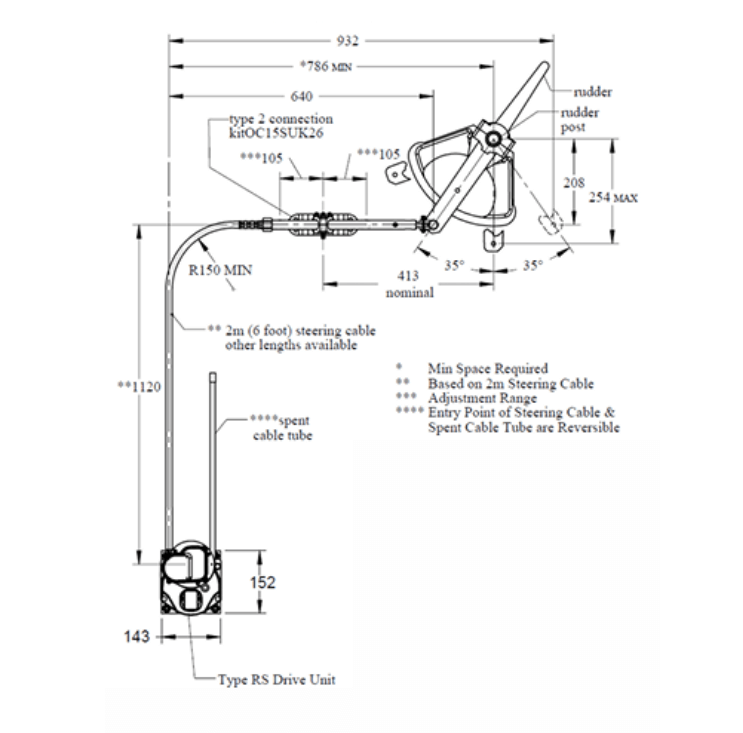

RS MECHANICAL LONG STROKE INSTALLATION AND SPECIFICATION INFORMATION
For yachts to maximum fully laden displacement 7000 KG (Approx 11.5m) with difficult (canoe stern) or other installation locations with tight spaces these mechanical cable drives can be the only solution. Or just used for there low power consumption and ease of installation.
LONG STROKE DRIVE UNIT SPECIFICATION AND INSTALLATION INFORMATION.
RS LONG STROKE DRIVE UNIT PRICE: 995,00€ (+ IVA)
RS LONG STROKE SPECS:
- Maximum Stroke: 12 in / 305 mm
- Peak Thrust: 400 lbs / 180 kg
- Max Rudder Torque: 333 ft-lb (450 Nm)
- Hard Over Time: 12–15 seconds
- Peak Current: 7 Amps
- Average Current: 2.5 Amps
- Tiller Arm Radius: 10 in / 254 mm
- Max Displacement: 15,400 lbs / 7,000 kg
- Max Boat Length: 38 ft / 11.5 m
- Voltage: 12 VDC
- Clutch Circuit Power: 850 mA

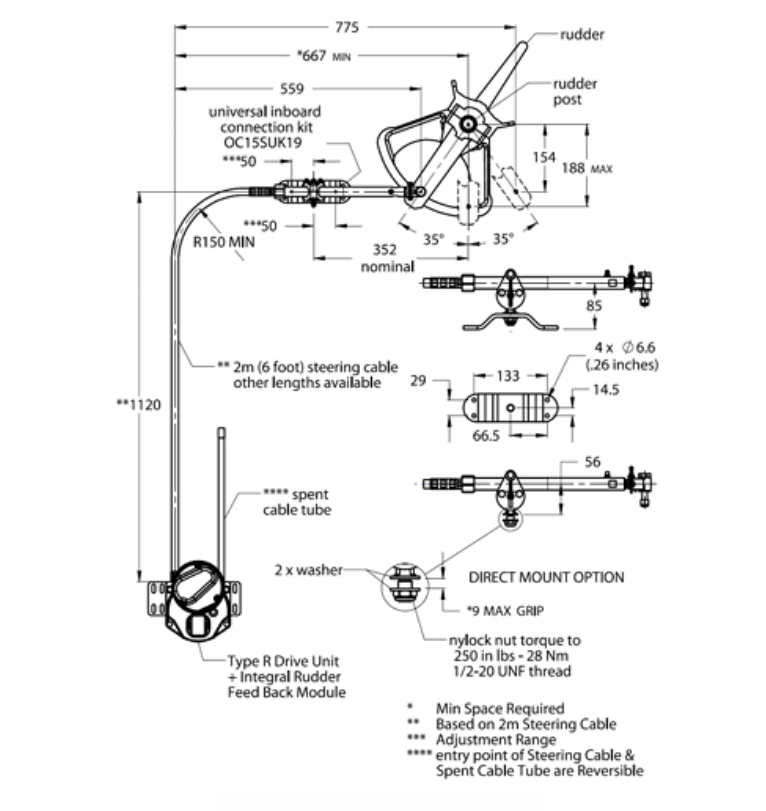

RS MECHANICAL SHORT STROKE INSTALLATION AND SPECIFICATION INFORMATION
For yachts to fully laden maximum displacement 6000 KG (Approx 10m length)
The short stroke offers fast response speeds with low power consumption for light racing yachts and is often used on long distance single handed races such as the Mini Transat race.
SHORT STROKE DRIVE UNIT SPECIFICATION AND INSTALLATION INFORMATION.
BPE0RSS0 – RS SHORT STROKE DRIVE UNIT PRICE: 895,00 € (+ IVA)
RS SHORT STROKE SPECS:
- Maximum Stroke: 8.5 in / 216 mm
- Peak Thrust: 400 lbs / 180 kg
- Max Rudder Torque: 250 ft-lb / 340 Nm
- Hard Over Time: 9–11 seconds
- Peak Current: 7 Amps
- Average Current: 2 Amps
- Tiller Arm Radius: 7.5 in / 190 mm
- Max Displacement: 13,200 lbs / 6,000 kg
- Max Boat Length: 32 ft / 10 m
- Voltage: 12 VDC
- Clutch Circuit Power: 850 mA
